RoTip
A rotational-axis plug-in that adds a fourth degree of freedom — continuous 0.1° rotation for true FIB lathe milling, tomography and STEM.
A lathe under the beam#

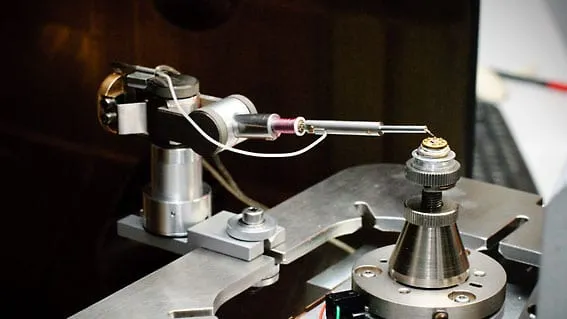

The RoTip bolts a rotational axis onto the MM3A-EM — a fourth degree of freedom that turns the manipulator into a miniature lathe under the ion or electron beam. A standard tungsten probe tip seats in the front of the axis and spins continuously, through 360°, in steps of 0.1° — fine enough for true FIB lathe milling, backside milling, and EFTEM, 3D and high-resolution mapping.
Two grams, then it disappears#
The rotational head weighs 2 g, is 32 mm long and 4 mm in diameter — light enough that it adds negligible mass to the MM3A-EM’s own positioning, and it turns with 0.01 mNm of torque. Fit it with the MGS2 microgripper instead of a bare tip and you can grip an object, then rotate it under the beam to present any face to the detector or the ion column — useful for tomography series or STEM imaging that needs more than one viewing angle. Your existing micromanipulator system can be quickly and easily upgraded for use with the RoTip.
Gallery
A tip prepared for the RoTip axis — 50 µm field of view.
Technical data
Dimensions
- Length
- 32 mm
- Diameter
- 4 mm
- Weight
- 2 g
Rotation
- Travel
- 360°, continuous
- Resolution
- 0.1° per step
- Torque
- 0.01 mNm
Environment
- Temperature range
- 273 K – 353 K
- Lowest pressure
- 10⁻⁷ mbar
Advantages
A true rotational axis
- Continuous 360° rotation in 0.1° steps
- Enables true FIB lathe milling, backside milling and tomography series
- EFTEM, 3D and high-resolution mapping become straightforward
Versatile tip mount
- Standard tungsten probe tips insert into the front of the axis
- Combine with the MGS2 microgripper to rotate gripped objects under the beam
Light enough to disappear
- 2 g rotational head, 32 mm long, 4 mm in diameter
- Adds minimal mass to the MM3A-EM's own positioning
- Retrofits to an existing MM3A-EM in minutes
