Micro Gripper MGS2
A two-jaw micro-gripper that picks up, holds and repositions micro-objects inside the electron microscope.
Twenty-nanometre steps, sub-nanometre reach#
The MGS2 turns a Kleindiek micromanipulator into a pair of tiny hands. Two tungsten-tip jaws, each piezo-controlled in 20 nm steps, close on a target within a (5 to 10 µm)² gripping area and a maximum span of 20 to 40 µm — a particle, a nanowire, a freshly cut lamella — so you can lift it, hold it and place it precisely somewhere else inside the microscope. At 28 mm long overall, with a 5 mm tip and 5 mm height, it works inside the same tight confines as the rest of the Kleindiek toolset, with positioning resolution below 1.5 nm and gripping force adjustable from 5 to 5000 µN by overdrive.
The core of an in-situ lift-out shuttle#
Grip a pre-cut lamella with the MGS2 and you skip the ion-beam-induced deposition a single probe tip needs to free a sample — no IBID contamination, and the release is fast and intuitive. That is exactly the role it plays inside the Lift-out Shuttle: contact the sample, free it from the surrounding bulk, then hand it to a TEM grid. As a plug-in tool it shares the manipulator’s sub-nanometre positioning and exchanges without tools for the rest of the Kleindiek lineup, so a single arm can grip, probe or sense force as the workflow demands. Custom-shaped tips and a cryo-compatible variant are both available. Your existing micromanipulator system can be quickly and easily upgraded for use with the MGS2.
Gallery

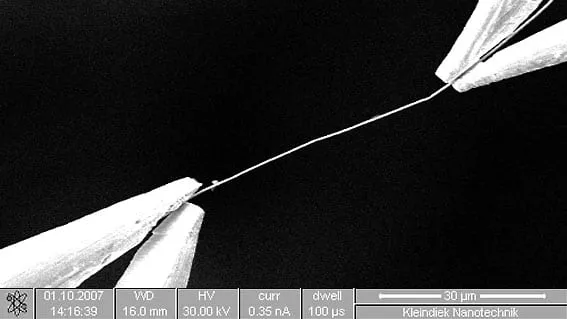

A wire gripped between the jaws, imaged at 30 µm — 0.35 nA beam current, 100 µs dwell.

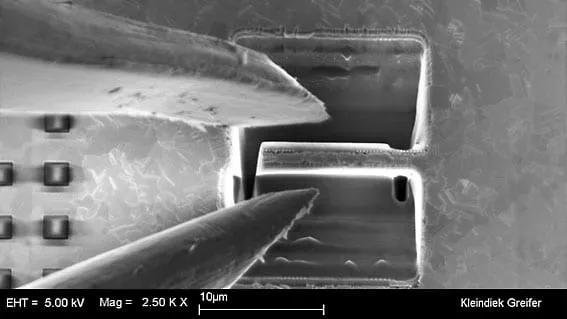

Approaching a trench-cut sample for lift-out, 2.50 K magnification.

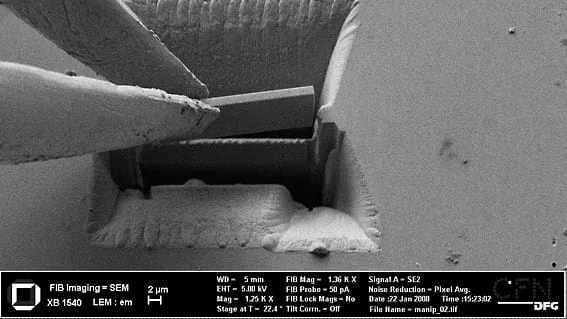

Lamella freed and gripped, imaged with the FIB at 2 µm.

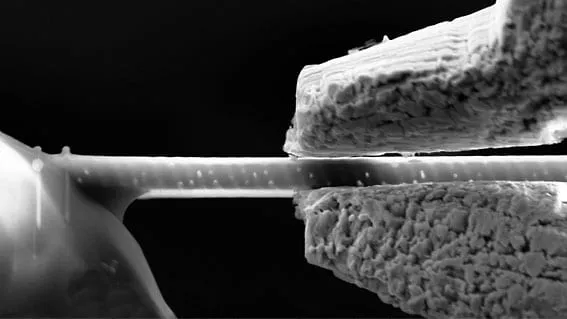

The jaws close on a lamella from both sides.

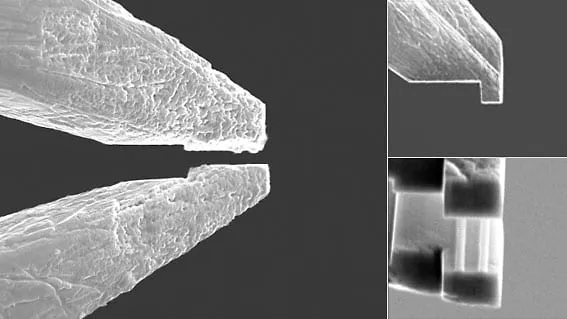

A custom-shaped tip, its profile and a TEM cross-section of the tip.
Technical data
Dimensions
- Total length
- 28 mm
- Tip length
- 5 mm
- Height
- 5 mm
Gripping
- Gripping area
- (5 to 10 µm)²
- Maximum span range
- 20 to 40 µm
- Gripping force
- 5 to 5000 µN (variable, via overdrive)
- Piezo step size
- 20 nm
- Positioning resolution
- < 1.5 nm
Environment
- Temperature range
- 273 K – 353 K
- Lowest pressure
- 10⁻⁷ mbar
See it run
Advantages
Grasp & place
- Two independently actuated tungsten-tip jaws, piezo-driven in 20 nm steps
- Gripping force set anywhere from 5 to 5000 µN by overdrive
- Ideal for particles, nanowires and TEM lamellae
Built for in-situ lift-out
- Grips a pre-cut lamella directly, avoiding the ion-beam-induced deposition a single probe tip needs
- Forms the core tool of the Lift-out Shuttle sample-preparation platform
- Custom-shaped gripper tips available on request
Plug-in design
- Mounts on the MM3A-EM and MM3E micromanipulators
- Swaps for another Kleindiek plug-in tool without tools, so one arm can grip, probe or sense force in the same session
- Cryo-compatible variant available
